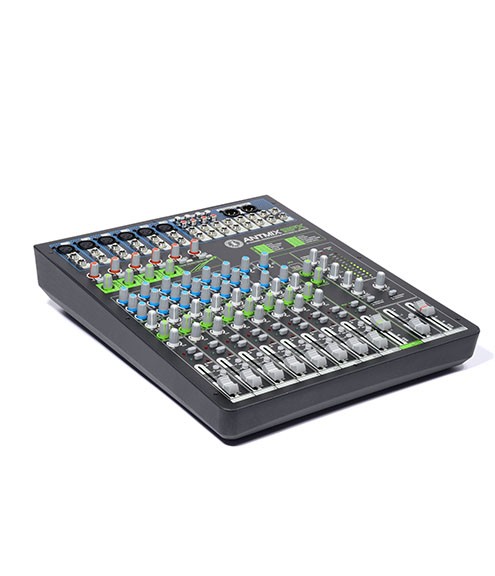

ANTMIX 12FX

12-CHANNEL MIXING CONSOLE

ANTMIX 12FX allows to manage sound in many different applications: a public speaking, a conference, but also more complex applications such as live music. The smart design of the console helps all kind of user to get the most of any audio performance. It represents a smooth solution featuring pro-details such as an advanced internal DSP with different effects and variations, the built-in compressor for main microphone inputs of 12FX, 60 mm faders as well as a series of I/O to fulfill a wide range of applications.
Specifically designed for an immediate and user friendly use, this mixer satisfies the needs of those who want an audio mixer providing excellent performances, wide versatility of connections and controls.

  • Make the most of any live audio performance
  • 24-bit Digital Sound Processed EFFECTS for the most creative mix
  • On-board mic preamp for low-noise and more dynamic range
  • MONO mic/line inputs 4 with compressor
  • Mic mono/stereo line inputs 2
  • Stereo line input 2
  • Dimensions (W x H x D) 340 x 100 x 416 mm
  • Weight 3,53 Kg
MICROPONE IMPUT
  • Connector Balanced XLR
  • Impedance 1.8 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain 0~55dB
  • Max input +15dB (balanced)
  • Low-cut 75Hz 12dB/oct.
  • Signal-to-noise ratio <-100 dBr A weighted
  • Phantom powering +48V
LINE INPUT
  • Connector Balanced 6,35mm (1/4”) - unbalanced RCA
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain +15dB~-35dB
  • Signal-to-noise ratio <-100 dBr weighted A
COMMON SPECIFICATION
  • Compressor<7br> only for channels featuring this control) Gain: 0 ---> 9 dB | Soglia: 20 dB ---> 5 dB
  • Hum & noise < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
  • Crosstalk < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
EQUALIZATION AND 2-TRACK IN
  • Mono & mono/stereo channels +/-15 dB @12 kHz / +/-15 dB @2.5 kHz /+/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @2.5 kHz / +/-15 dB @80 Hz +/-15 dB @12 kHz / +/-15 dB @2.5 kHz+/- 15 dB @80 Hz
  • Stereo channels +/-15 dB @12 kHz / +/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @80 Hz+/-15 dB @12 kHz / +/-15 dB @80 Hz
MICROPHONE INPUT
  • Connector 2 x unbalanced RCA
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain OFF~+15dB
STEREO RETURNS
  • Connector 2 x balanced 6,35mm (1/4”)
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain OFF~+15dB
DSP
  • A/D - D/A converters 24 bit
  • Number of e ects 16 for 6FX – 100 for 8Fx and 12FX
  • Controls Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX) Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX)
OUTPUTS
  • MAIN MIX connectors 2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)
  • MAIN MIX max output level +22 dBu XLR balanced (+16 dBu unbalanced)
  • MAIN MIX output impedance 120 Ω
  • GR1-2 in connectors (12FX only) 2 x TRS balanced 6,35mm (1/4”)
  • GR1-2 max output level (12FX only) +22 dBu XLR balanced (+16 dBu unbalanced)
  • GR1-2 output impedance (12FX only) 120 Ω
  • Headphones connector Unbalanced TRS 6,35mm (1/4”)
  • Headphones impedance 30 Ω
  • Control room connectors 2 x balanced TRS 6,35mm (1/4”)
  • Control room impedance 120 Ω
  • 2-TK connectors 2 x unbalanced RCA
  • 2-TK impedance 1 kΩ
