ASM
ACTIVE COAXIAL STAGE MONITORS
OF THE SAME SERIES: ASM 10 ASM 12 ASM 15

ASM 12

ACTIVE COAXIAL STAGE MONITOR

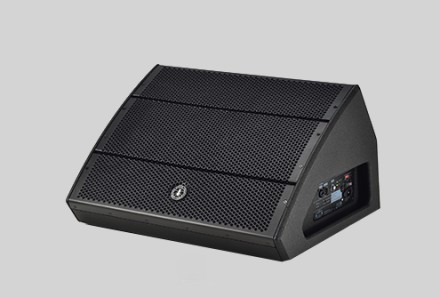

ASM is an active 2-way coaxial stage monitor available in 3 models with 10, 12 or 15” woofers and 1” Compression Driver. Specially designed for an immediate use, ASM adapts to the needs of musicians of every kind.

Thanks to the ultra-efficient acoustic design and intuitive on-board controls, ASM always guarantees a professional performance.

The side panel is equipped with a COMBO MIC/LINE IN (with a mode selection switch), LINK OUT, output level control and EQ presets (live or playback) enabling users to set the best signal management for every situation.

ASM stage monitor features an essential and contemporary design. The cabinet is equipped with side recessed handles. a 35 mm hole for a vertical installation on a tripod and is entirely covered with a highly resistant anti-scratch coating.

Padded covers are available as accessories.

  • Active 2-way stage monitor
  • Coaxial acoustic design
  • SPL up to 126 dB
  • INPUT  MIC/Line
  • OUTPUT  LINK
  • EQ Presets
  • Hole for 35 mm pole (vertical use)
  • Recessed side handle
  • Anti-scratch coating
  • System 2-way vented box
  • LF Custom 12” Woofer, 2.5” VC
  • HF 1” compression driver, 1.35” VC
  • Amplification Class-D + Class-A/B
  • Peak power (LF+HF) 600W
  • Frequency response (+/-10dB) 65Hz-20kHz
  • MAX SPL 124dB
  • DSP 56Bit
  • AD/DA conversion 24Bit / 48kHz
  • EQ 2 Presets
  • Input and output connectors MIC/LINE COMBO (XLR-F + 2 x jack 6.35mm. 1/4”) LINK output: XLR-M
  • Controls LEVEL, LINE/MIC switch ON-PEAK/SIGN LEDs PRESET button
  • Operating mains Fuse 220-240V~ 50-60Hz T2A L 250V~ 110-120V~ 50-60Hz - T4A L 250V~
  • Max power consumption 300 W
  • Cabinet 2 recessed handles Pole mount Ø 35mm. hole
  • Cabinet material 15mm plywood
  • Cabinets finishing Anti-scratch paint with high mechanical resistance
  • Dimensions (W x H x D) 450 x 338 x 510 mm
  • Net weight 19 Kg.
  • Optional accessories CV-SM12 padded cover
